Description

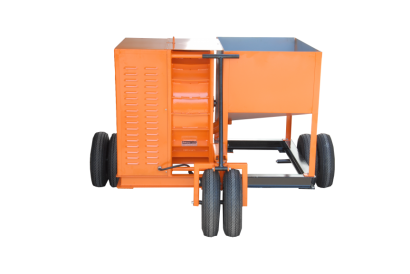

The 2″ pump is intended for larger production, heavy-bodied materials, and aggregate/fibers.
For the pumping of epoxy or cement grouts, as well as spraying for the shotcrete market.
Fiber or aggregated formulas are easy to pump with this squeeze pump and the Carrousel can run dry indefinitely without damage, unlike the progressive cavity pumps or rotor/stator pumps.
Because of its peristaltic design, this is the easiest pump to clean and maintain. Simply flush the system with water or solvent and pump several foam balls or cleaning pigs through the Carrousel Pump, and it is clean!
2″ Pump Size
- System Weight: 1400 lbs (approximately)
- Dimensions Pump: L = 73″ W = 43″ H= 41″
- 100 Gallon Hopper
Production Rates
- 6 plus cubic yards per hour
- Can pump/spray about 3 times more product than smaller Carrousel pump
Aggregate Size
- 3/8″ pea gravel
Spray Gun
- 40 CFM
Available Power Options
- Hydraulic
- Needs a hydraulic power pack capable of 6 GPM at 1800 PSI.
- 220v Electric
- Requires a 30 amp circuit of clean power
- Single phase
